B737 cockpit progress – end side of the sidewalls

Hello all,

I wanted to give a small update on the 1/12 B737 cockpit project. This time I have made the main structure of the end side of the sidewalls, which basically is about half of the sidewall. If I am not mistaken that compartment is the stowage for the captain and first officer luggage.

Everything done so far is just basic shape. I still have to add other details and parts, but since this has to be casted later, I have to plan ahead which parts must be glued together and which should be casted separately.

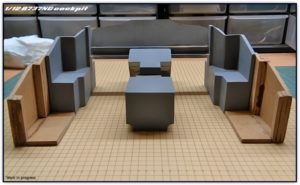

Looking at the photo with the panel at the front, you can see that the two sidewalls create a kind of curvature towards the panel. That will be the next step to do, I will create that round edge going on top of the sidewalls to meet where the glareshield/autopilot will go. Part of this edge is the window rail so it will be very interesting to see what is the space I leave behind as I am considering making the nose shell, that definitely would be a BIG challenge.

I have to say that I am using lots of references from several different sources, however, there is a source which is the main line in this project. My friend Philippe is helping me a lot during this project as with his help I am able to see things coming directly from the real thing.
There are lots of great simmers who made incredibly simulation cockpits and sometimes I do use their measurements for some specific things (mainly angles), but, I always confirm this from images of the real cabin.

I want to move forward this week with the 747 cargo project so I am already planning how to start the rear cargo holds.

Finally, the decal provider has shipped me back the 8 micron decal papers and I hope to print the upcoming new liveries for next month, kudos to him for solving the issue I explained in my previous post.

Wish you all a nice week!

Guillem
